What is Woven Plastic Net?

Woven plastic nets are a kind of plastic net made of PE, PA and other plastic pellets as raw materials added with UV stabilizer, antioxidants and then is drawn and woven.

It features high tensile strength, anti-aging, corrosion resistant, lightweight, large cover area, etc. It can be seen in agriculture and geo fields and work as sun shade net, anti bird net, wind net, construction safety net, etc.

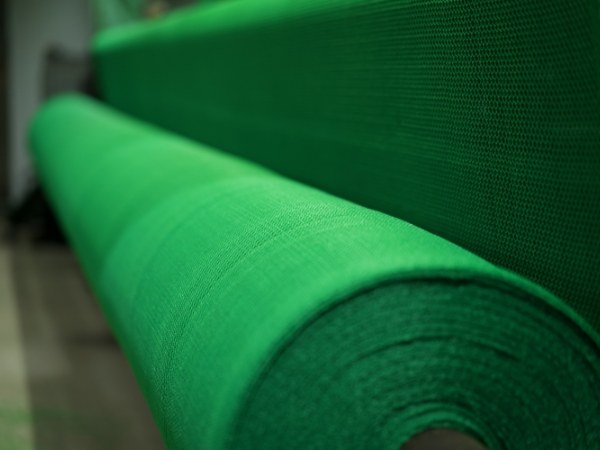

Woven plastic net in the production process
Material

Woven plastic net is generally made of PE, PP, PA6 and other thermoplastic polymers as raw materials added with antioxidants, UV stabilizers, plasticizers, flame retardant, heat stabilizer and other additives, and then is drawn and woven.

Polypropylene (PP)
It is one of the lightest material among general plastics, and has good mechanical properties, heat resistance, electrical insulation and chemical stability. In addition to strong oxidant, it will not react with most chemicals.
Low density polyethylene (LDPF)
It is also known as high pressure polyethylene and has excellent softness, ductility, transparency, cold resistance, electrical insulation, fabricability, stable chemical property and good resistant to acids, alkalis and organic solvents at 60 °C below.
High density polyethylene (HDPE)
It is also called low pressure polyethylene and has excellent high temperature and low temperature resistance and an operating temperature ranging from -70 °C to 100 °C. It has higher mechanical properties than low density polyethylene, good wear resistance, great chemical stability and is almost insoluble in any solvent at room temperature.
Polyamide 6 (PA6)
Polyamide 6, also known as polycaprolactam or nylon 6, is currently one of the highest tensile strength synthetic fibers produced on an industrial scale. As a result, it has amazing wear resistance among natural and synthetic fibers. It has poor acid resistance but high alkali resistance under high temperature, good corrosion resistance and not easy to flame.

Woven plastic net can be made into plastic nets with various density by adjusting the pitch and yarn size to meet your various needs.

Woven plastic nets in different colors are placed together.
Weaving Process

We have plastic nets made by different weaving process for you to choose from. Besides, we also provide made-to-order services, for more information, please contact us directly.

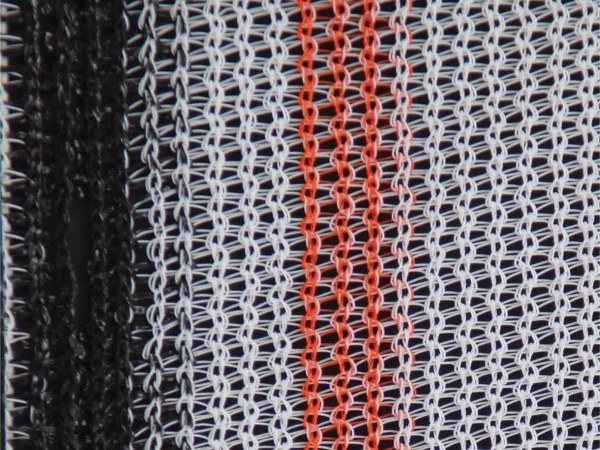

Triple color round wire warp knitted net

Round wire warp knitted net

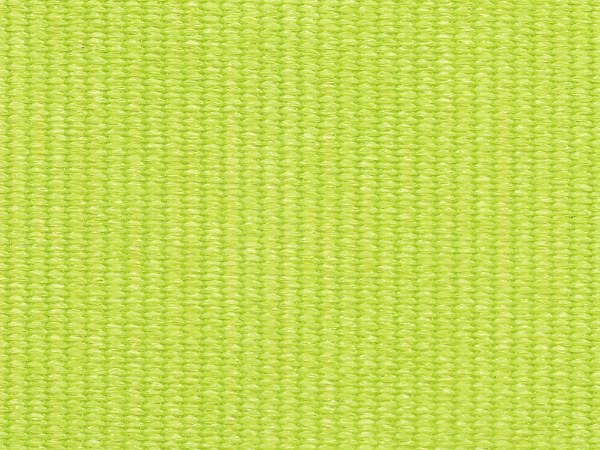

Yellow flat wire warp knitted net

Flat wire warp knitted net

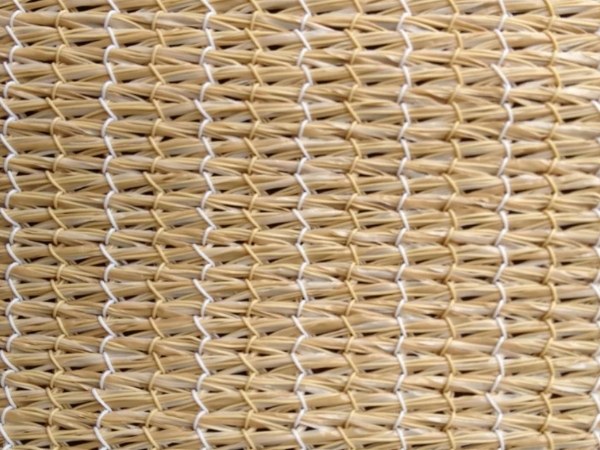

Round-flat wire warp knitted net

Round-flat wire warp knitted net

Monofilament Raschel hanging warp knitted net

Raschel hanging warp knitted net

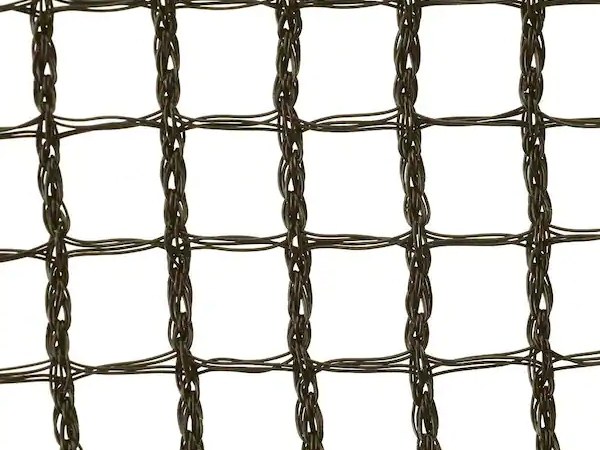

Monofilament Raschel square warp knitted net

Raschel square warp knitted net

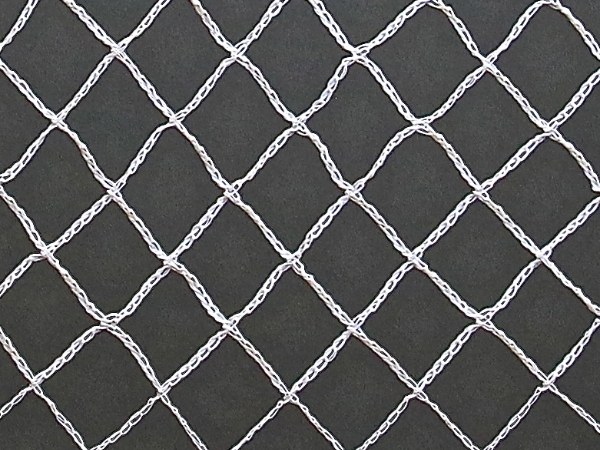

Monofilament diamond warp knitted net

Diamond warp knitted net

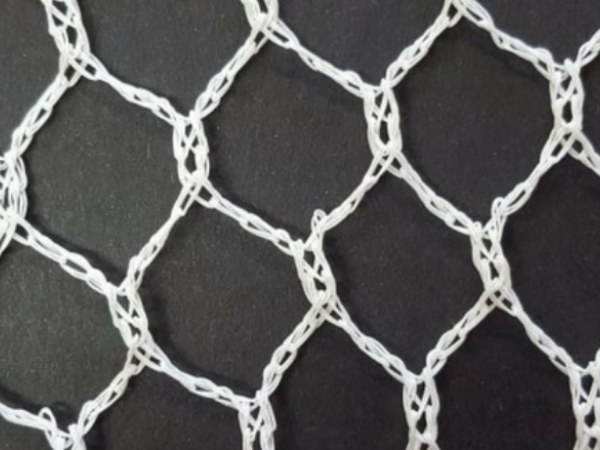

Monofilament hexagonal warp knitted net

Hexagonal warp knitted net

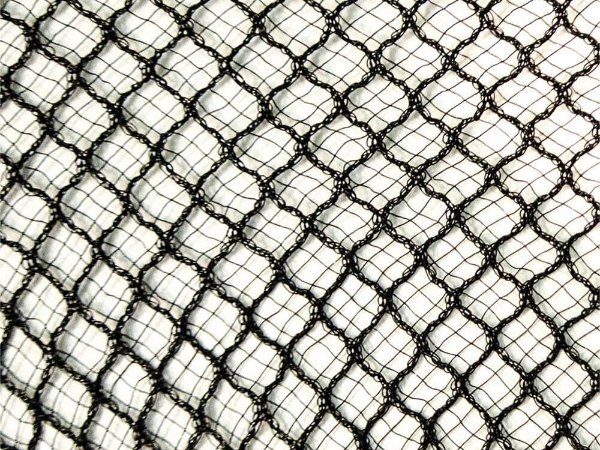

Monofilament double wire four cross warp knitted net

Double wire four cross warp knitted net

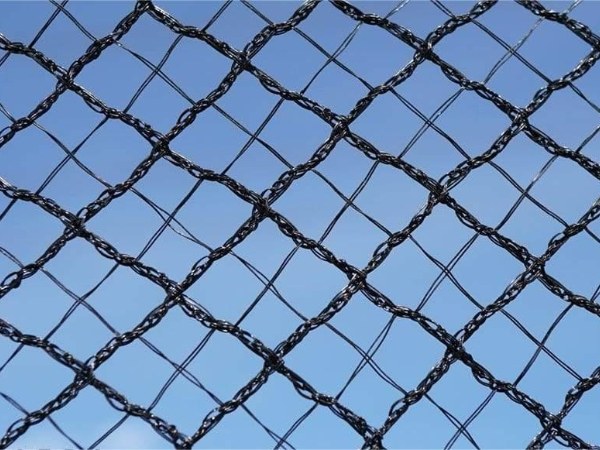

X-weave warp knitted net

X-weave warp knitted net

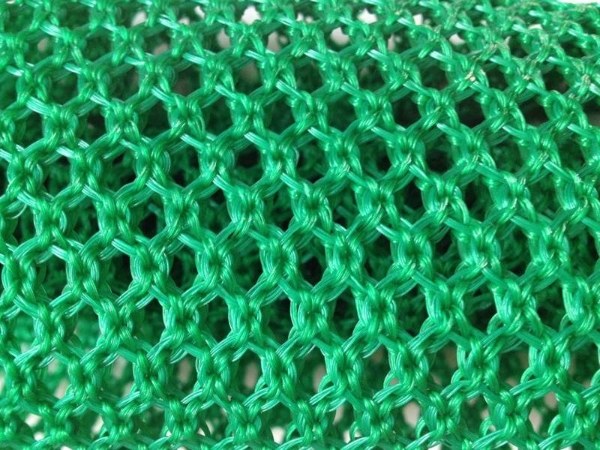

Monofilament multistrand warp knitted net

Monofilament multistrand warp knitted net

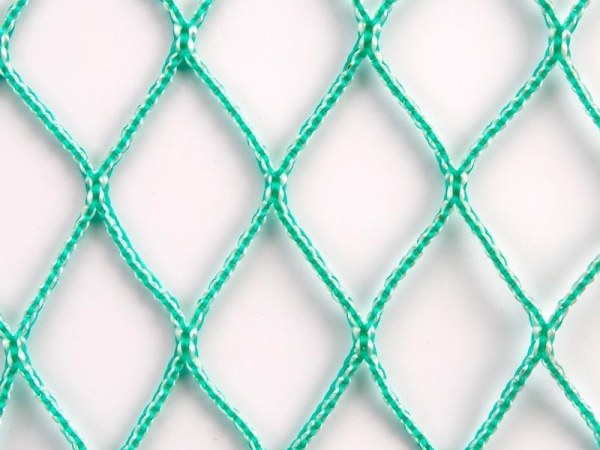

Multifilament knotless netting

Knotless netting

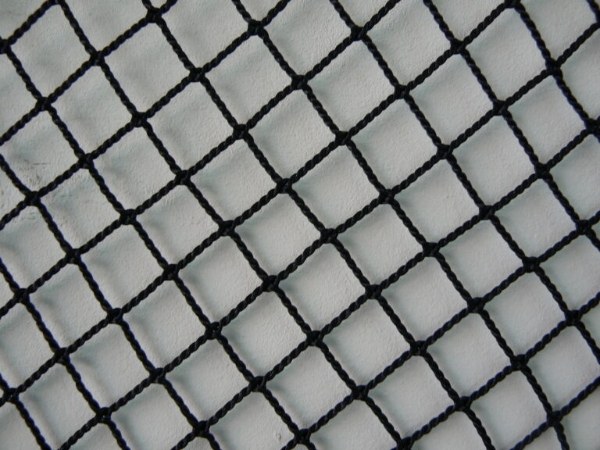

Multifilament twisted knotless netting

Twisted knotless netting

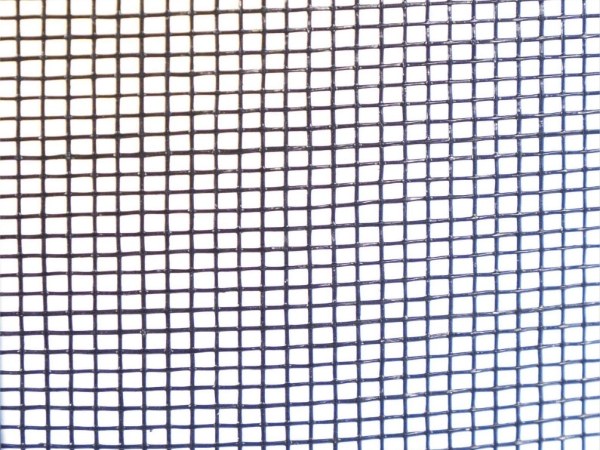

Flat woven plastic net

Flat woven plastic net

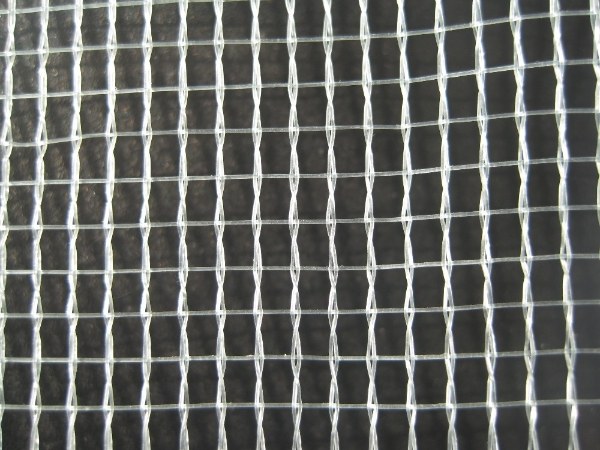

Twisted plastic net

Twisted plastic net

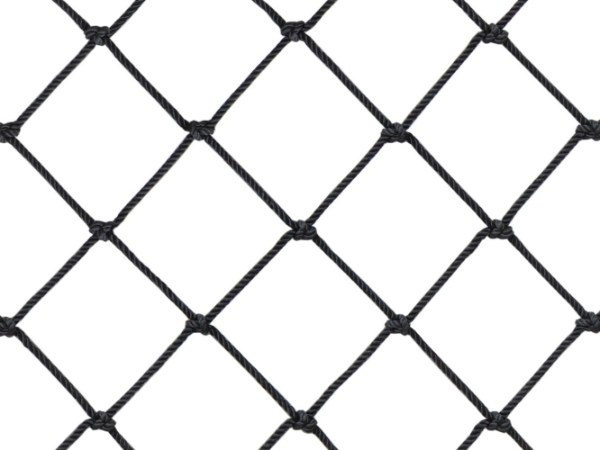

Zero twist knotted netting

Zero twist knotted netting

Production Process

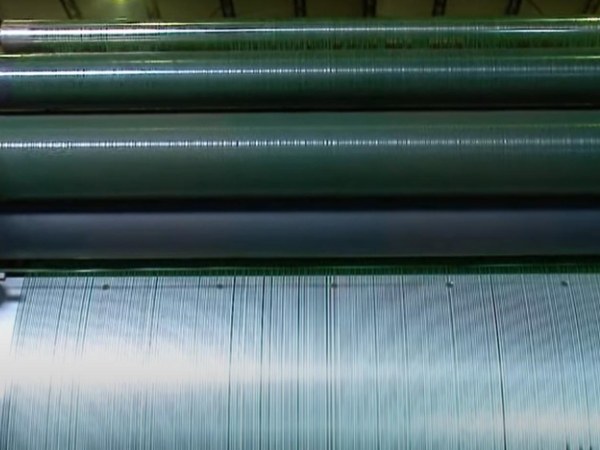

The wire drawing machine is drawing plastic wires.
Step1

Drawing

Plastic film enters into the flat/round wire drawing machine and is cut and drawn into wires and then is wound up as rolls.

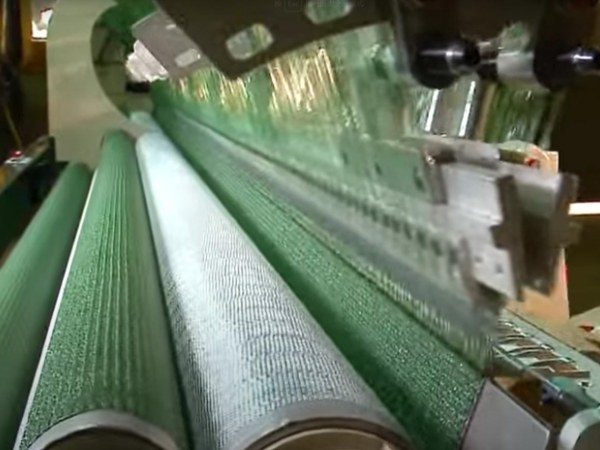

The machine is braiding plastic net.
Step2

Braiding

Woven plastic nets are woven by plastic braiding machine through special weaving process.

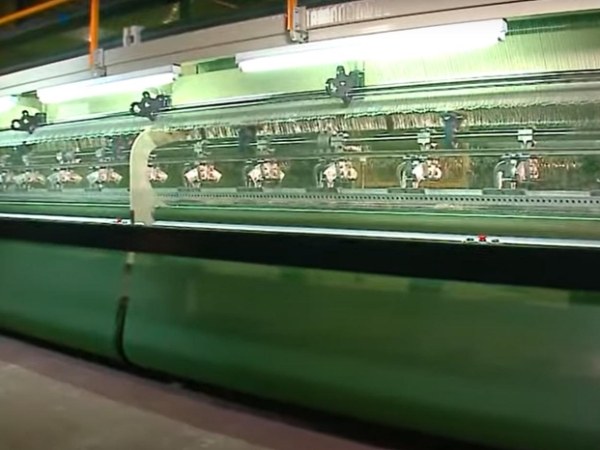

The plastic net is made into rolls.
Step3

Rolling

The finished plastic nets are wound up as rolls to facilitate handling or further processing.

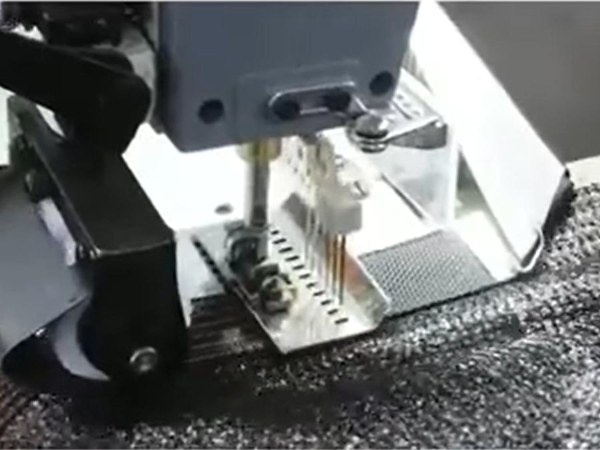

The machine is sewing the plastic net edges for reinforcement.
Step4

Sewing

Sew the plastic net edges for reinforcement.

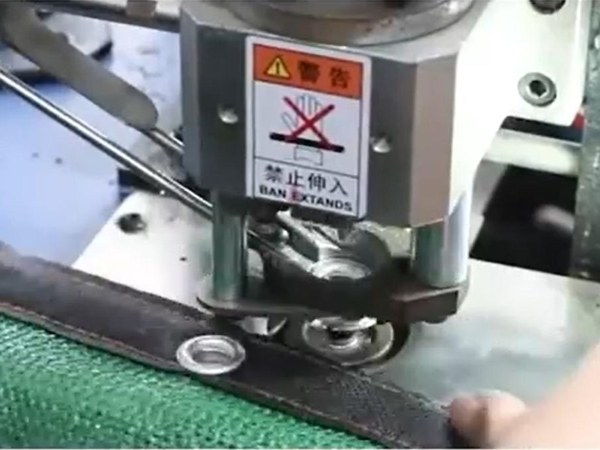

Grommet is installed on the plastic net.
Step5

Grommet

Grommets are installed on the plastic net to prevent the rope rubbing against the plastic net.
