Plastic Mesh Gutter Guard Installation Guide

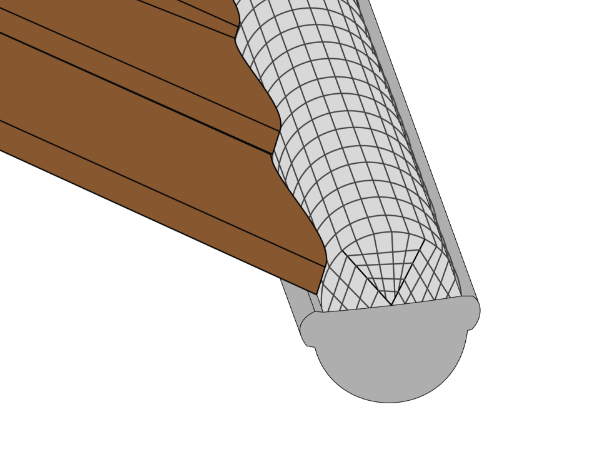

Plastic mesh gutter guard can suit to gutters of all types and protect gutters and rain drain pipes from roof debris and falling leaves. UV stabilizer is added to the material to make it can be used in outdoors for a long time.

Flat Gutter Guard Installation

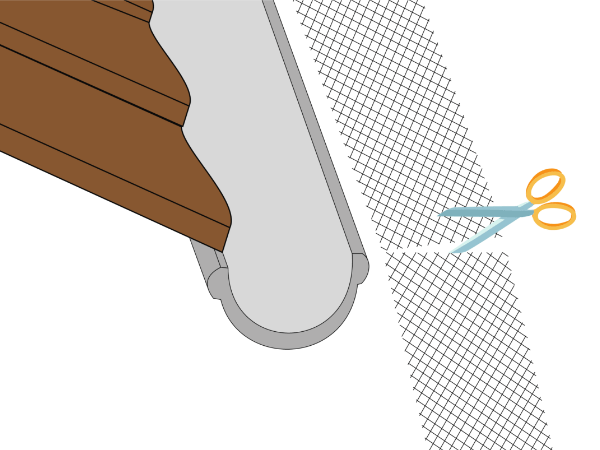

Cut the plastic mesh gutter guard into the desired size.
Step 1

Step 1: Cut the flat plastic mesh gutter guard into the desired length.

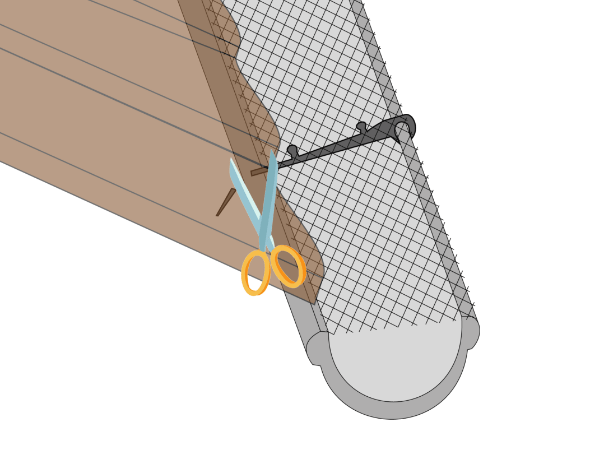

Cut the excessive length of the clip hook for fixing the gutter guard.
Step 2

Step2: Cut the excessive length of the clip hook and insert it to the gutter edges.

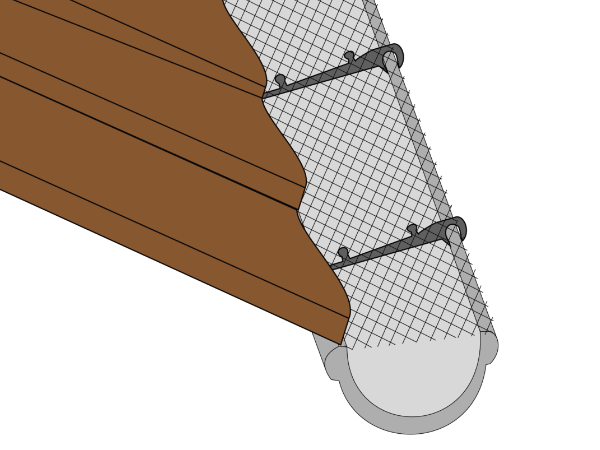

Fix the plastic mesh gutter guard with clip hooks.
Step 3

Step 3: Fix the plastic mesh gutter guard with clip hooks.

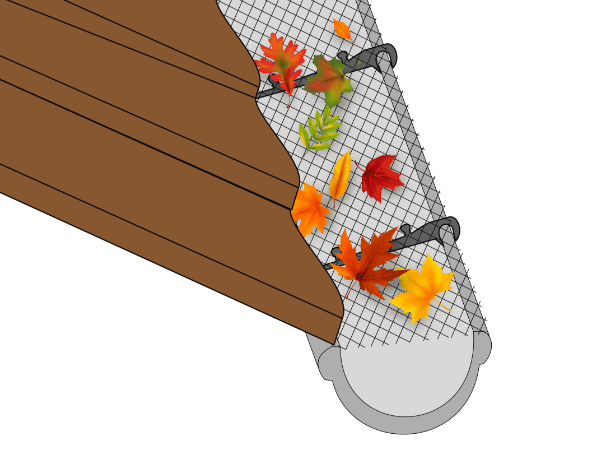

The plastic mesh gutter guard installation is finished.
Step 4

Step 4: The flat plastic mesh gutter guard installation is finished.

Convex Gutter Guard Installation

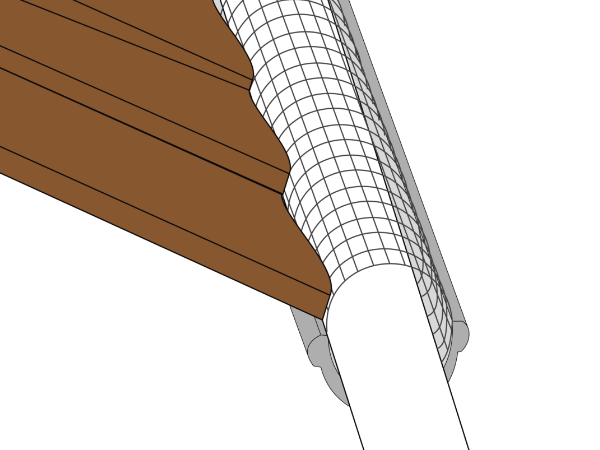

Put the convex plastic gutter guard into the gutter.
Step 1

Step 1: Put the convex plastic gutter guard into the gutter.

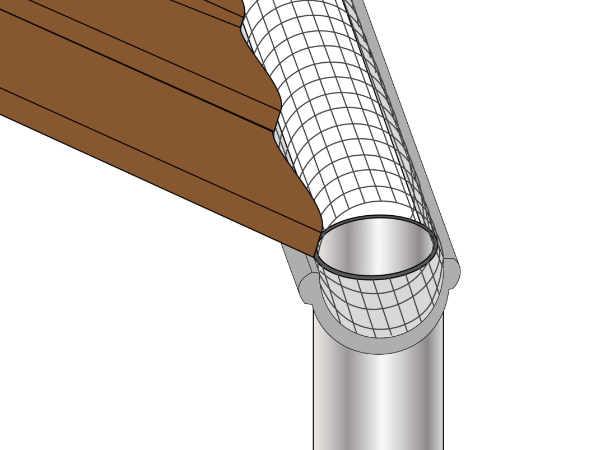

Leave space for the downspout.
Step 2

Step 2: Below the convex plastic mesh gutter guard, leave a space for the downspout based on the size of the downspout.

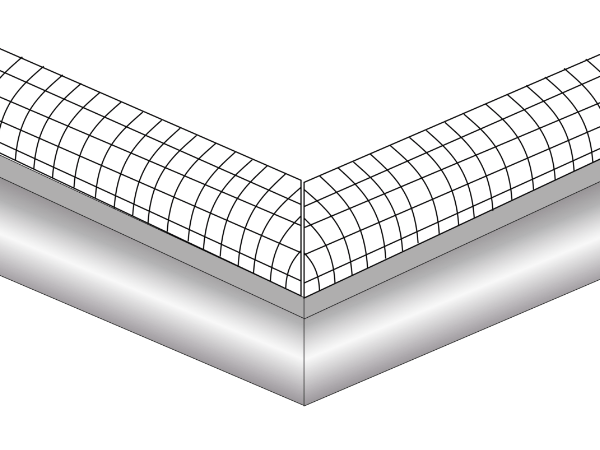

Bevel the convex plastic gutter guard.
Step 3

Step 3: Bevel the convex plastic gutter guard at the corner.

Cut and fold the end of the plastic mesh gutter guard.
Step 4

Step 4: Cut and fold the end of the plastic mesh gutter guard to prevent birds from netting in the gutter.
