Resin Infusion Mesh Installation Guide

Resin infusion mesh is a high permeability flow media used for composite vacuum injection process. It works well with polyester, vinyl ester and epoxy resins. It drives the resin to flow to the designated position of the mould and accelerates the flow rate.

Installation Structure

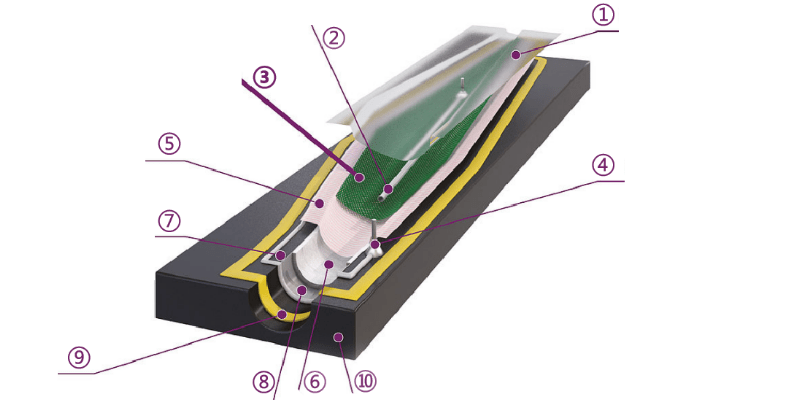

Vacuum injection process structure diagram
  1. Vacuum Bagging Film
  2. Resin Flow Channel
  3. Resin Infusion Mesh
  4. Connectors & Manifolds
  5. Release Film & Peel Ply
  6. Laminate
  7. Pressure Sensitive Tape
  8. Get Coat/Paint Care
  9. Sealant Tape
  10. Mould
